WD10 DISPENSER PRODUCTS INSTALLATION
|
WD10 Installation
|
|

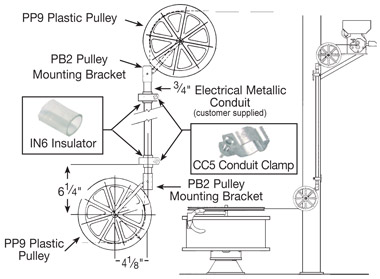

| A This installation
requires the least amount of pull because pulleys are used to change wire
direction. |
 |
|
Optional accessories
needed for installation |
|
Qty. |
Description |
|
2 |
PB2 Pulley
Mounting Bracket |
|
2 |
PP9
Plastic Pulley |
|
2 |
IN6
Insulator |
|
2 |
CC5
Conduit Clamp |
|
3/4" (19 mm)
Conduit
(customer supplied) |
PB2 Pulley Mounting
Bracket
can be converted to swivel with the addition of two SC1 Set Screw
Collars.
|
B

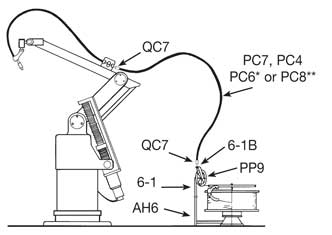

WD10 with plastic conduit attached to robot.
| Optional accessories
needed for installation |
|
Qty |
Description
|
| 1 |
AH6
Accessory Holder |
| 1 |
6-1 Pulley
Conduit Adapter |
| 1 |
6-1B
Conduit Adapter |
| 1 |
PP9 Plastic
Pulley |
|
PC7
Premium, PC4, PC6* or PC8** HDPE Conduit (sold by the foot). |
| 2 |
QC7 Quick
Coupler....or |
| 2 |
7-5 Plastic
Conduit End Connector |
|
|
* To use PC6 HDPE Conduit, order a QC8 and QCN6 in place of QC7 or
7-5.
** To use PC8 HDPE Conduit, order a QC8 and QCN8 in place of QC7 or
7-5. |
|
 |
|
* To use PC6 HDPE Conduit, order a
QC8 and QCN6 in place of QC7 or 7-5.
** To use PC8 HDPE Conduit, order a
QC8 and QCN8 in place of QC7 or 7-5. |
|

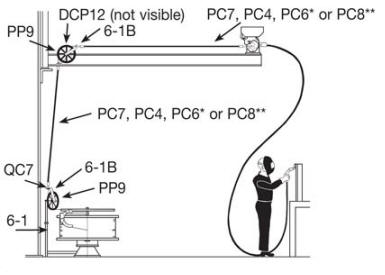

C WD10 located below the pivot point of gib
crane with plastic conduit attached to feeder.
| Optional accessories needed
for this installation |
|
Qty |
Description |
|
1 |
AH6 Accessory Holder |
|
1 |
6-1 Pulley Conduit Adapter |
|
2 |
6-1B Conduit Adapter |
|
2 |
PP9 Plastic Pulley |
|
1 |
DCP12 Double Conduit Pulley Bracket
|
|
PC7 Premium, PC4, PC6* or
PC8** HDPE Conduit (sold by the foot) |
|
4 |
QC7 Quick Coupler |
|
OR |
|
4 |
7-5 Plastic Conduit End Connector |
|
|
|
|
D
WD10 located over a welding booth can conserve floor space.
| Optional accessories needed
for installation |
|
Qty |
Description |
|
1 |
AH6 Accessory Holder |
|
1 |
6-4 Pulley Adapter
|
|
1 |
PP9 Plastic Pulley
|
|
|
| E
If a number of dispensers need to be centrally located, this method is
commonly used.
|
 |
| CD8 Centering Device |
One person can position a large reel of wire
on a WD10 base with the help of
a forklift and the optional centering device. |
|
 |
|
|
